We improve your production efficiency
High performance rubber sheet - Trusted globally
Non-Asbestos Sheet
Our Non-Asbestos Gasket Sheet is specially engineered to offer excellent sealing performance without the use of asbestos materials. making it suitable for a wide range of industrial applications requiring resistance to oil, fuel, water, and moderate heat.
Key Properties
✅ Asbestos-free composition for health and environmental safety
✅ Excellent oil and fuel resistance
✅ Suitable for sealing water, steam, and light chemicals
✅ Good mechanical strength and dimensional stability
✅ Easy to cut, punch, or CNC machine into custom gaskets
Typical Applications
✅ Automotive and diesel engines
✅ Chemical processing equipment
✅ Pumps, compressors, and pipeline flanges
✅ General-purpose gasket for industrial maintenance

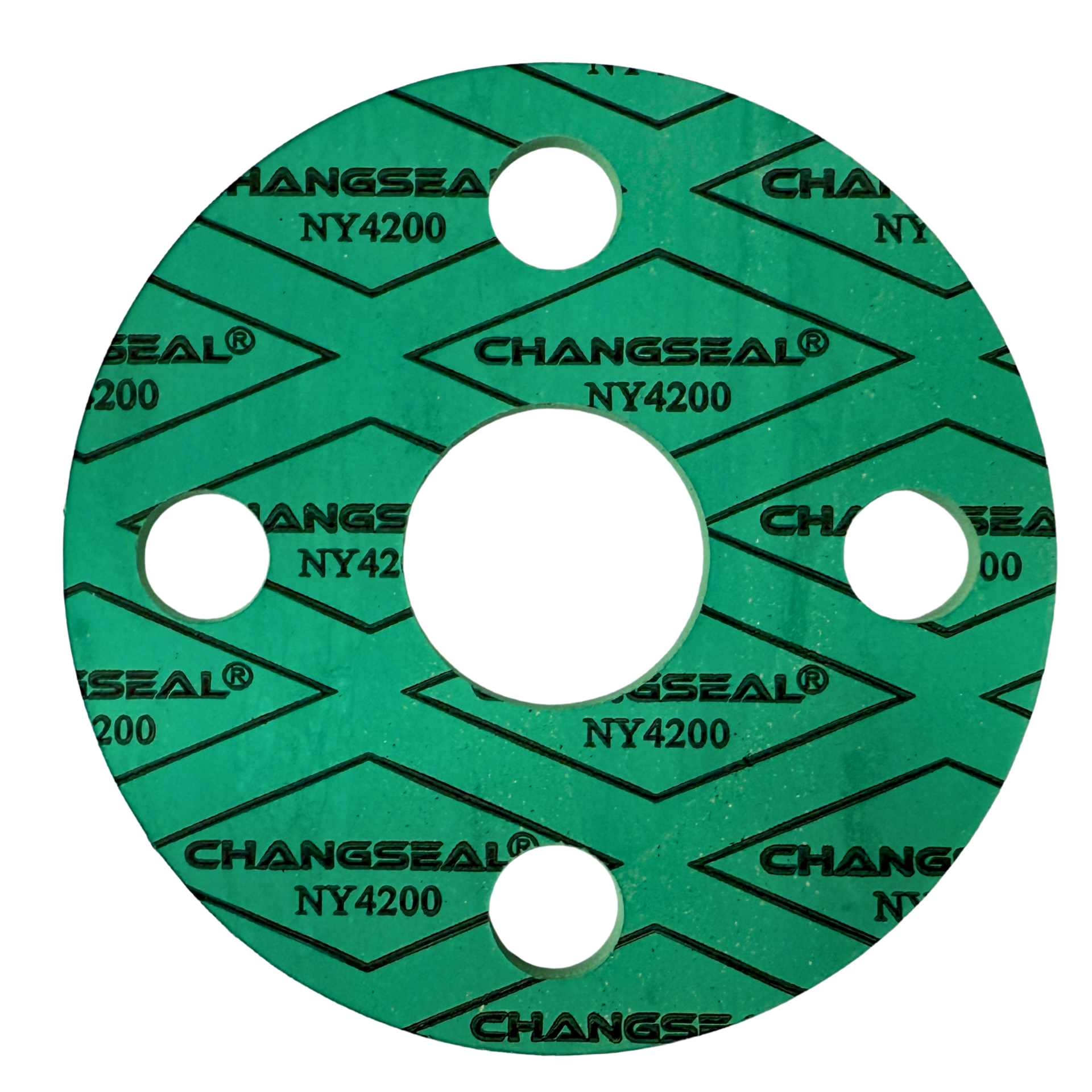

Non Asbestos Rubber Sheet
NY4200
Material Type : Non-Asbestos (Asbestos Free) rubber sheet
Material Composition : Organic Aramid Fibers, Inorganic Mineral Fibers and
NBR/SBR as elastic adhesive binder
Applications : Ship building, pump valve, plumbing and sanitary ware, pipe valve
mechanical assembly and etc.
Thickness : 0.5 mm. - 6.0 mm.
Surface Finish : Green color
Operating Condition :
- Max peak temperature 250°C
- Max operating temperature 200°C
(Test Condition: 200°C, 8 MPa steam pressure for 30 minutes – no breakdown observed.)
Dimensions of standard sheets :
- 1,500 mm x 1,500 mm.
- 1,500 mm x 3,000 mm.

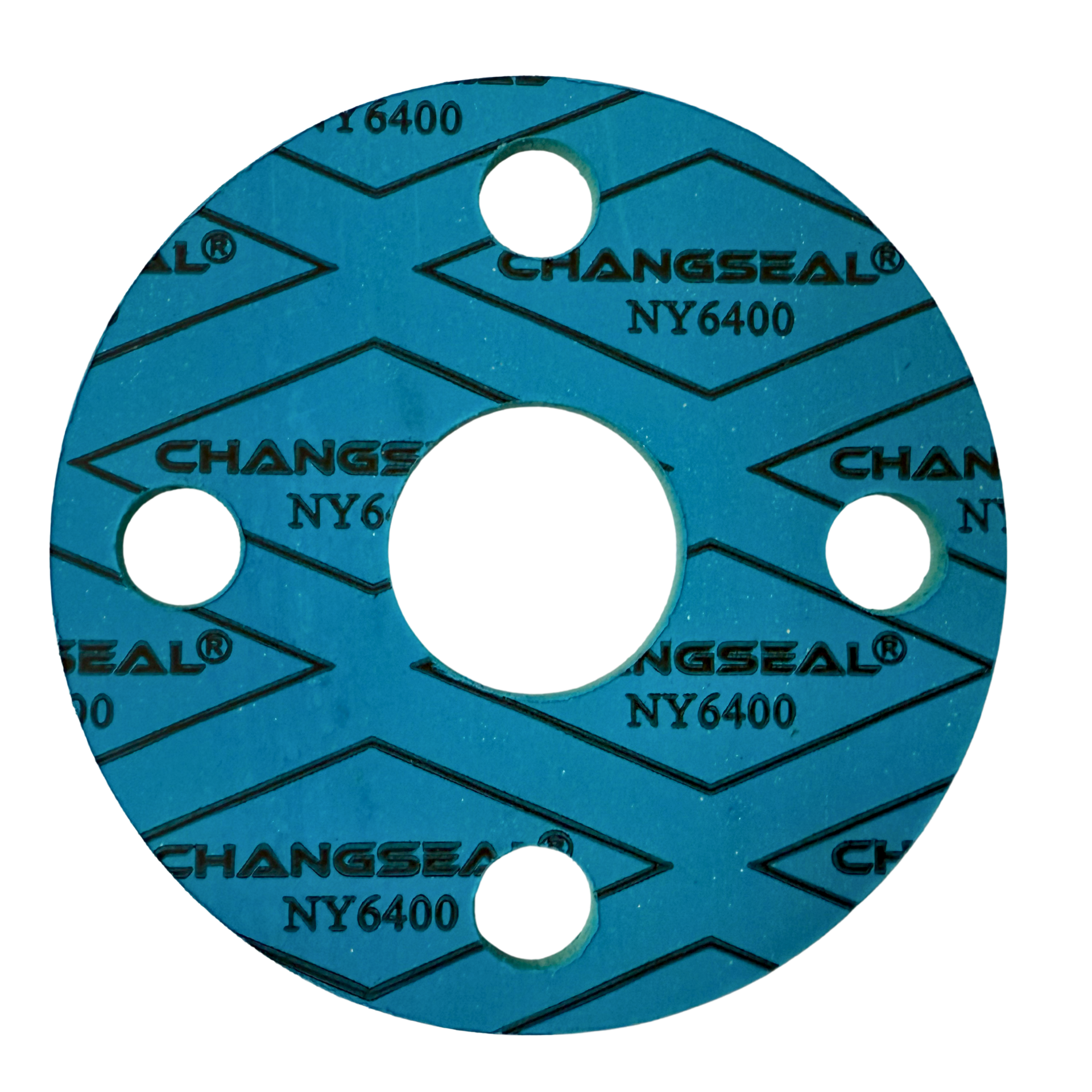

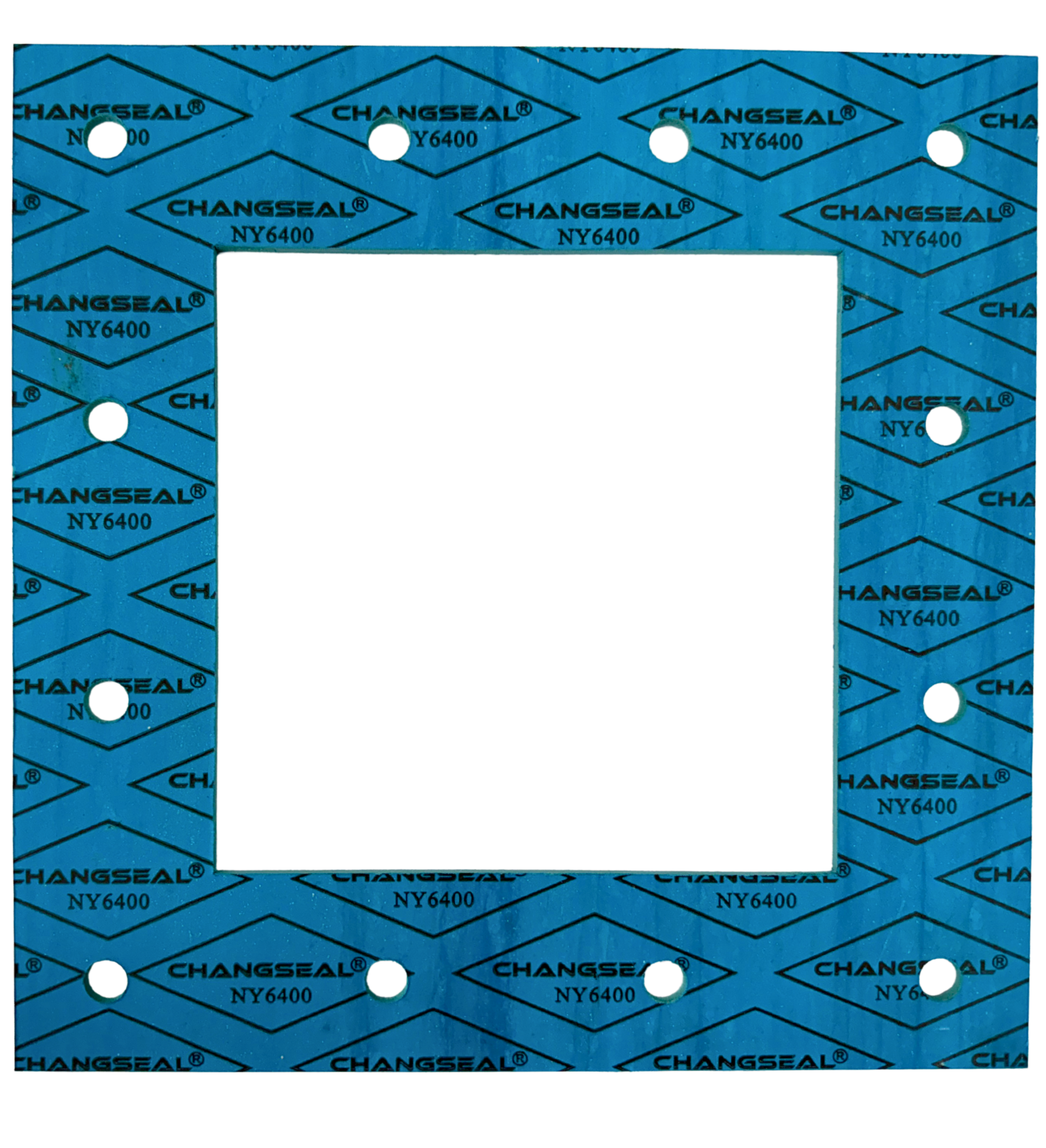

Non Asbestos Rubber Sheet
NY6400
Material Type : Non-Asbestos (Asbestos Free) rubber sheet
Material Composition : Organic Aramid Fibers, Inorganic Mineral Fibers and
NBR as elastic adhesive binder
Applications : Ship building, pump valve, plumbing and sanitary ware, pipe valve
mechanical assembly and etc.
Thickness : 0.5 mm. - 6.0 mm.
Surface Finish : Blue color
Operating Condition :
- Max peak temperature 400°C
- Max operating temperature 350-400°C
(Test Condition: 400°C, 8 MPa steam pressure for 30 minutes – no breakdown observed.)
Dimensions of standard sheets :
- 1,500 mm x 1,500 mm.
- 1,500 mm x 3,000 mm.
Available in various thicknesses and sizes.
Custom die-cut or CNC-cut gaskets
available upon request.
